Mastering Synchronous Sequential Circuits: An Authoritative Wiring and Troubleshooting Guide

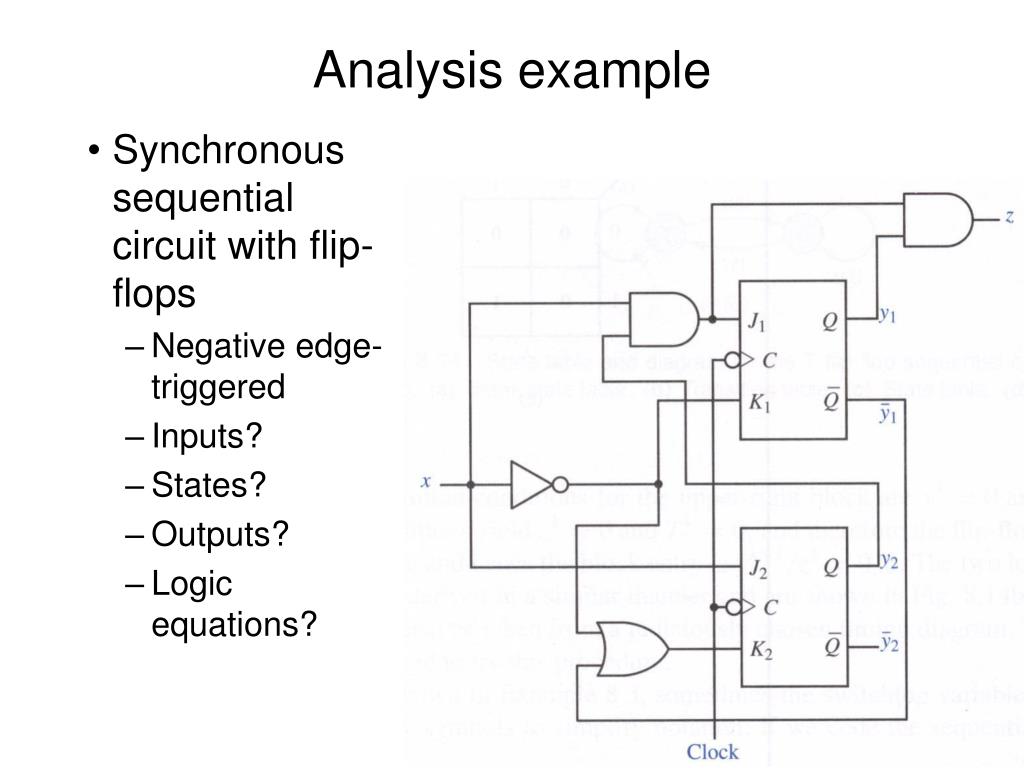

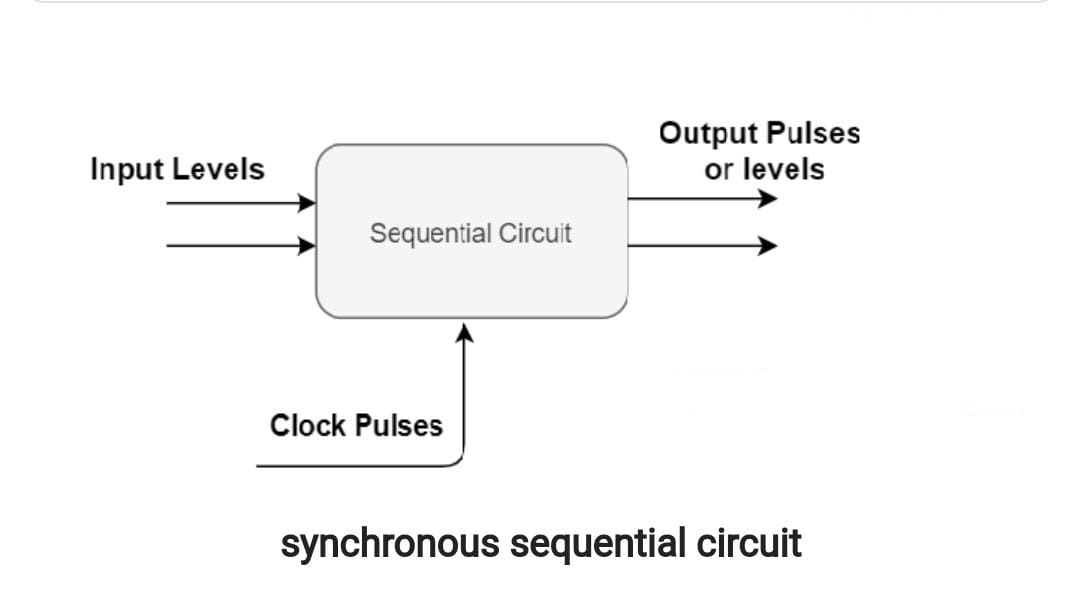

Synchronous sequential circuits represent a cornerstone in modern digital design, enabling the creation of systems with predictable, timed behavior. These circuits store past input information, allowing their output to depend on both current inputs and previous states. Fundamentally, all state changes within synchronous sequential circuits examples are synchronized to a common clock signal, ensuring orderly operation.

Core Components of Synchronous Sequential Circuits

Understanding the fundamental building blocks is crucial for effective analysis and implementation of synchronous sequential circuits examples. The primary components include:

• Flip-Flops: These are the memory elements (e.g., D-type, JK-type, T-type) that store the circuit's state. Their outputs change only on the active edge of the clock signal.
• Combinational Logic Gates: Comprising AND, OR, NOT, XOR, and other fundamental gates, this logic determines the next state of the flip-flops and the circuit's outputs based on current inputs and the present state.
• Clock Source: A periodic signal that synchronizes all state transitions within the circuit. The quality and distribution of this signal are paramount for reliable operation.
• Input Signals: External data or control signals that provide information to the circuit, influencing its behavior.
• Output Signals: The resulting data or control signals generated by the circuit, often derived from the present state and/or current inputs.
• Reset/Preset Lines: Asynchronous or synchronous inputs used to initialize the flip-flops to a known starting state.

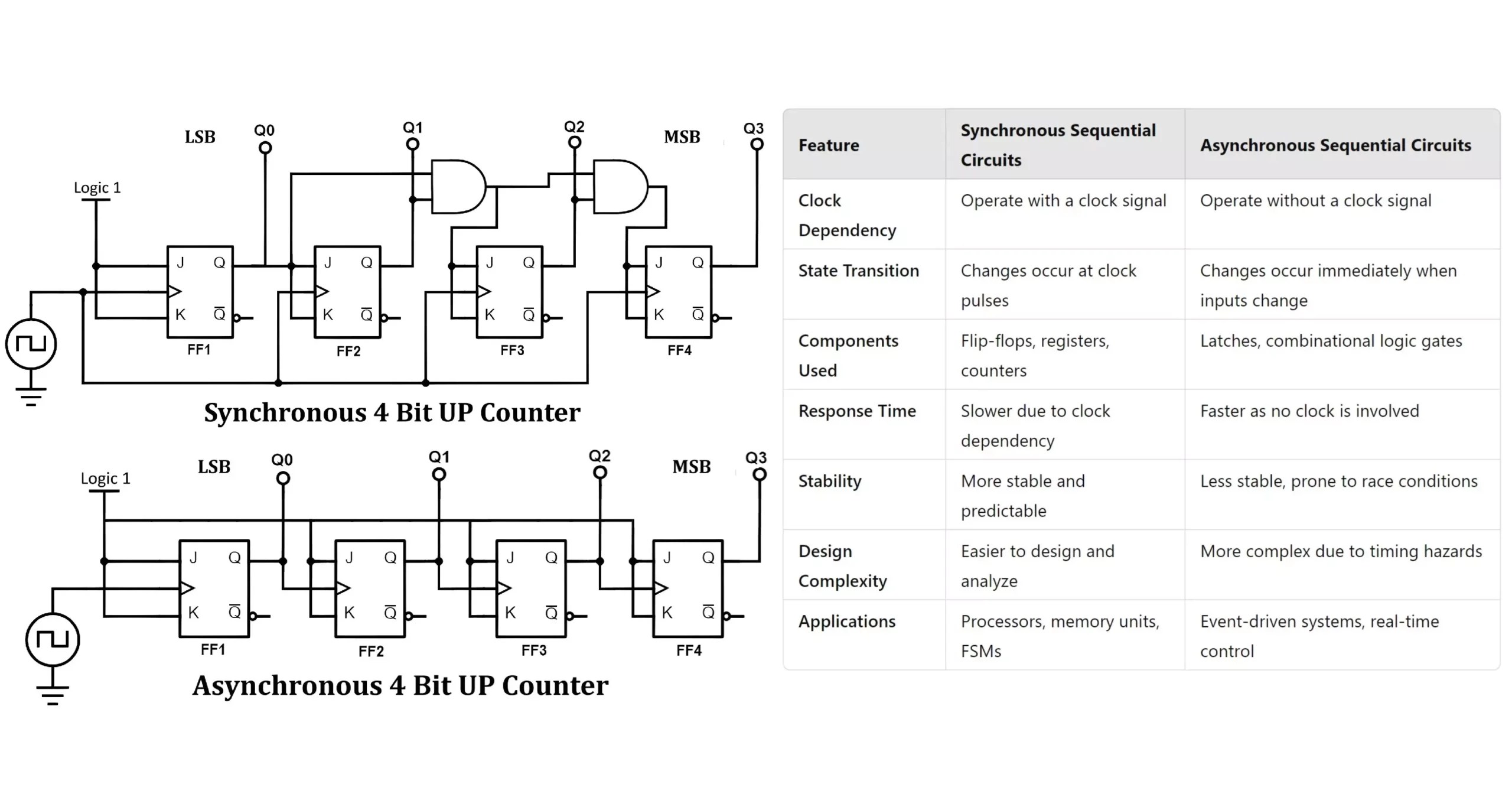

Conceptual Wiring Flow for Synchronous Sequential Circuits Examples

While specific wiring varies based on the circuit's function, the underlying flow of signals within synchronous sequential circuits examples follows a consistent pattern. This systematic approach ensures predictable state transitions and output generation.

1. Clock Signal Distribution: The central clock signal originates from a stable oscillator and is meticulously distributed to the clock input of every flip-flop within the synchronous sequential circuit. Precise clock routing is critical to minimize skew, ensuring all flip-flops receive the clock edge simultaneously. Deviations here can lead to unstable operation.
2. Input Signal Processing: External input signals are fed into the combinational logic block. This logic, in conjunction with the current state feedback, processes these inputs to determine the conditions for the next state and the immediate circuit outputs.
3. Next-State Logic Calculation: The combinational logic takes the current external inputs and the present state outputs from the flip-flops (Q outputs) as its inputs. It computes the desired "next state" values, which are then routed to the data inputs (D, J, K, T) of the respective flip-flops. This crucial stage determines how the circuit will evolve.
4. State Storage in Flip-Flops: At the arrival of the active clock edge, each flip-flop latches the value present at its data input. This action simultaneously updates the flip-flop's internal state, making the new state available at its Q (and Q') outputs. This transition is synchronous across all memory elements.
5. Output Generation: The circuit's final outputs can be derived directly from the current state (the Q outputs of the flip-flops) or from a separate combinational logic block that takes the current state and possibly current inputs to generate the required external outputs. This separation ensures outputs are stable during the clock cycle.
6. Feedback Loop Formation: The outputs of the flip-flops (representing the present state) are often fed back as inputs to the combinational logic block. This feedback loop is what gives sequential circuits their memory and ability to transition through a defined sequence of states.
7. Reset/Clear Activation: A dedicated reset or clear signal, typically asynchronous but sometimes synchronous, is connected to the appropriate input of all flip-flops. When activated, this signal forces the circuit into a predetermined initial state, overriding normal clock-driven operation for initialization or error recovery.

Troubleshooting and Usage Guide for Synchronous Sequential Circuits

Debugging synchronous sequential circuits examples demands a systematic approach, often diverging from combinational logic troubleshooting due to their inherent memory and time-dependent nature. Addressing common operational issues proactively enhances system reliability.

Symptom 1: Erratic or Incorrect State Transitions

Analysis: This often manifests as the circuit jumping to unintended states, skipping states, or getting stuck in a particular state. The most common culprits are clocking issues, incorrect combinational logic, or setup/hold time violations.

Actionable Solution:

• Clock Integrity Check: Verify the clock signal's waveform, frequency, duty cycle, and, most importantly, its distribution. Utilize an oscilloscope to check for excessive clock skew between different flip-flops. Unequal arrival times of the clock signal can cause some flip-flops to update before others, leading to race conditions and incorrect state interpretation. Clock buffers and dedicated clock trees are often required for complex synchronous sequential circuits examples.
• Combinational Logic Verification: Systematically check the truth table and Boolean equations for the combinational logic that generates the next-state values. A single error in a gate connection or logic function can lead to incorrect next-state calculations. Isolate the combinational logic and test it independently if possible.
• Setup and Hold Time Adherence: Ensure that the data input to each flip-flop remains stable for the specified setup time before the active clock edge and for the hold time after the active clock edge. Violations, especially hold time violations, are notoriously difficult to debug as they can cause meta-stability, where the flip-flop output enters an indeterminate state. Re-evaluate propagation delays in the combinational logic path.

Symptom 2: Outputs Not Updating or Stuck

Analysis: This indicates that the circuit is either not transitioning states correctly or the output logic itself is faulty. It could be related to clock signals, power, or output gate issues.

Actionable Solution:

• Power and Ground Connections: Confirm all integrated circuits (ICs) have proper power supply voltage and ground connections. Insufficient power can lead to intermittent operation or non-functioning components. Decoupling capacitors should be placed near each IC to stabilize power lines.
• Flip-Flop Output Verification: Monitor the Q outputs of the flip-flops with a logic analyzer or oscilloscope. If these outputs are not changing as expected with the clock signal, the flip-flops themselves might be faulty, or their data inputs are incorrect.
• Output Combinational Logic Review: If the flip-flop states are correct but the final outputs are wrong, the combinational logic responsible for generating the external outputs requires scrutiny. Ensure correct connections and logic functions, especially if outputs are not direct Q-line derivations.
• Enable/Load Pin Check: Some flip-flops or registers have enable or load pins. Ensure these are correctly asserted to allow data to be loaded or output to change. An improperly asserted enable pin can cause outputs to appear "stuck."

Symptom 3: Unpredictable Behavior on Power-Up

Analysis: The circuit does not reliably start in a known state, leading to inconsistent initial operation. This is almost always a reset issue.

Actionable Solution:

• Robust Reset Circuitry: Implement a reliable power-on reset (POR) circuit. This typically involves an RC network or a dedicated reset IC that generates a clean, sufficiently long reset pulse upon power-up. An inadequate reset pulse (too short, noisy, or slow rising edge) will not properly initialize all flip-flops.
• Synchronous Reset Consideration: For synchronous sequential circuits examples, a synchronous reset is often preferred. This means the reset signal is sampled by the flip-flops only on the active clock edge, preventing asynchronous behavior and potential race conditions during reset de-assertion. If using an asynchronous reset, ensure its de-assertion is carefully timed to avoid meta-stability.
• All Flip-Flops Initialized: Verify that the reset signal is connected to and effectively initializes every sequential element in the circuit. Missed flip-flops will retain arbitrary states upon power-up.

Warnings and Safety Risks

Working with any electronic circuit, including synchronous sequential circuits examples, necessitates adherence to safety protocols to prevent component damage and personal injury.

1. Static Discharge Protection: Many integrated circuits, particularly CMOS-based flip-flops and logic gates, are highly susceptible to electrostatic discharge (ESD). Always use ESD-safe practices, including grounding mats and wrist straps, when handling components to prevent irreversible damage.
2. Power Supply Integrity: Ensure that the power supply voltage and current ratings match the circuit's requirements. Over-voltage can instantly destroy ICs, while insufficient current can lead to unstable operation. Incorrect polarity can also cause catastrophic failure.
3. Thermal Management: While individual logic gates consume minimal power, larger synchronous sequential circuits examples, especially those operating at high frequencies or driving significant
